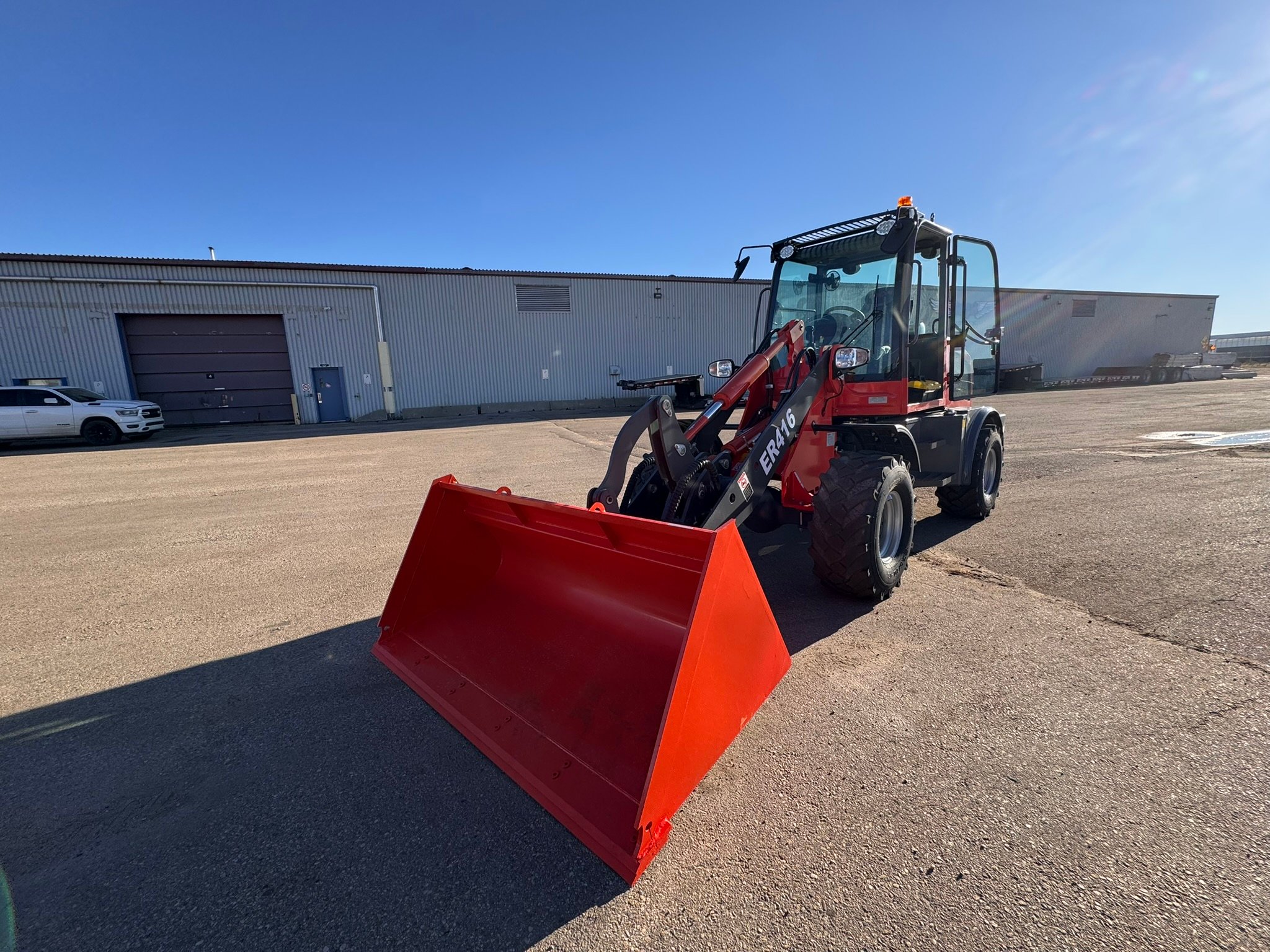

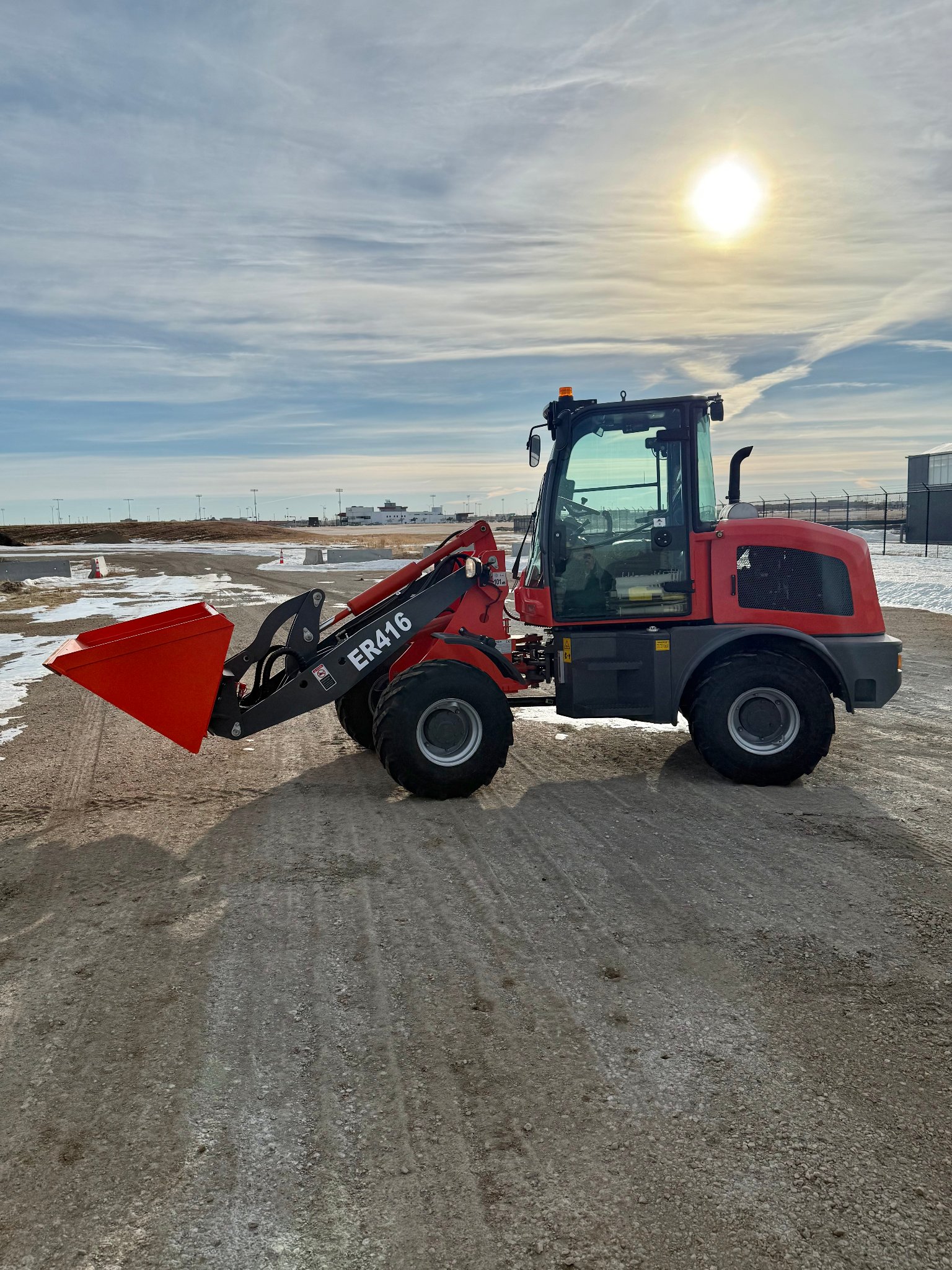

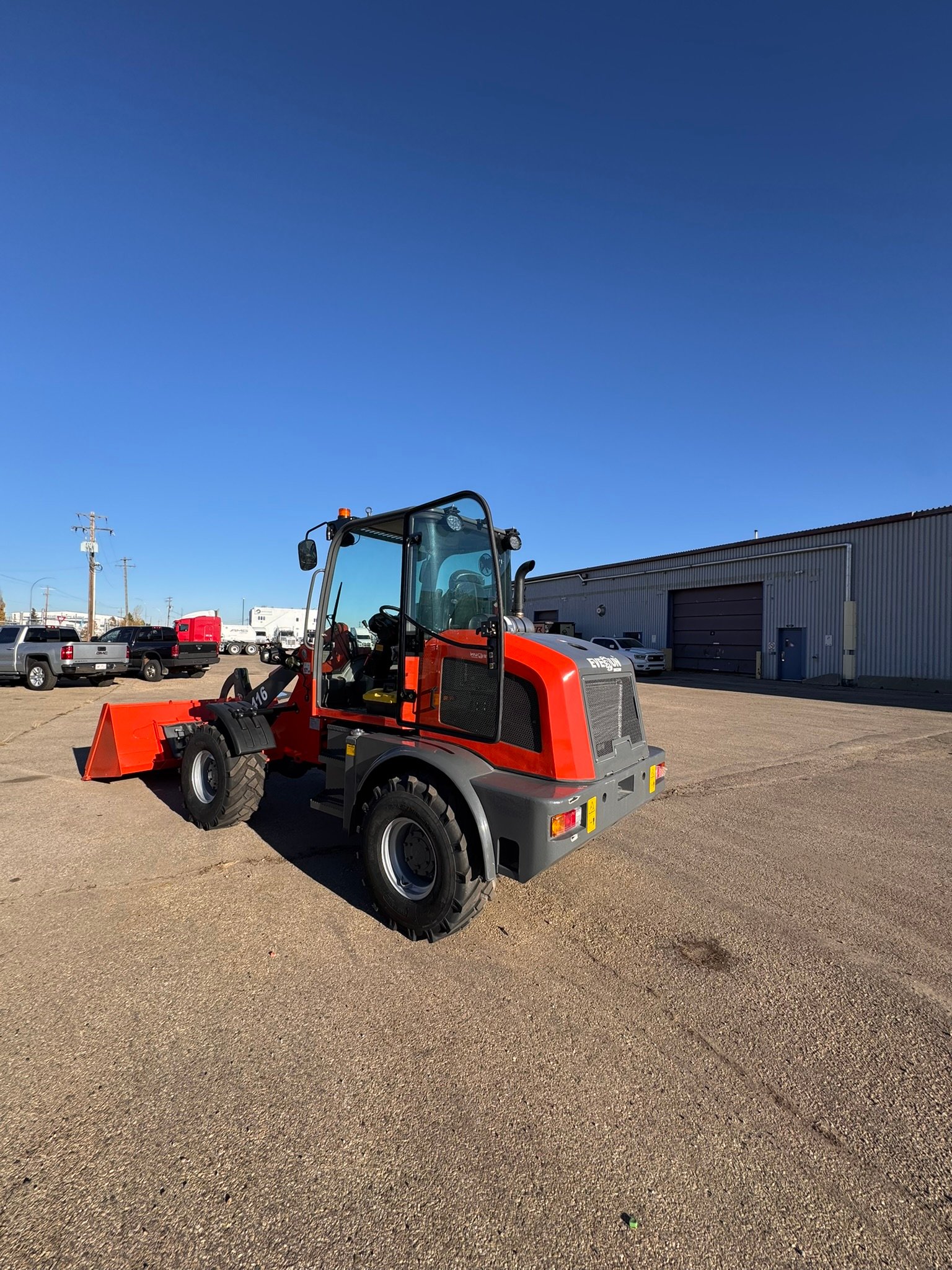

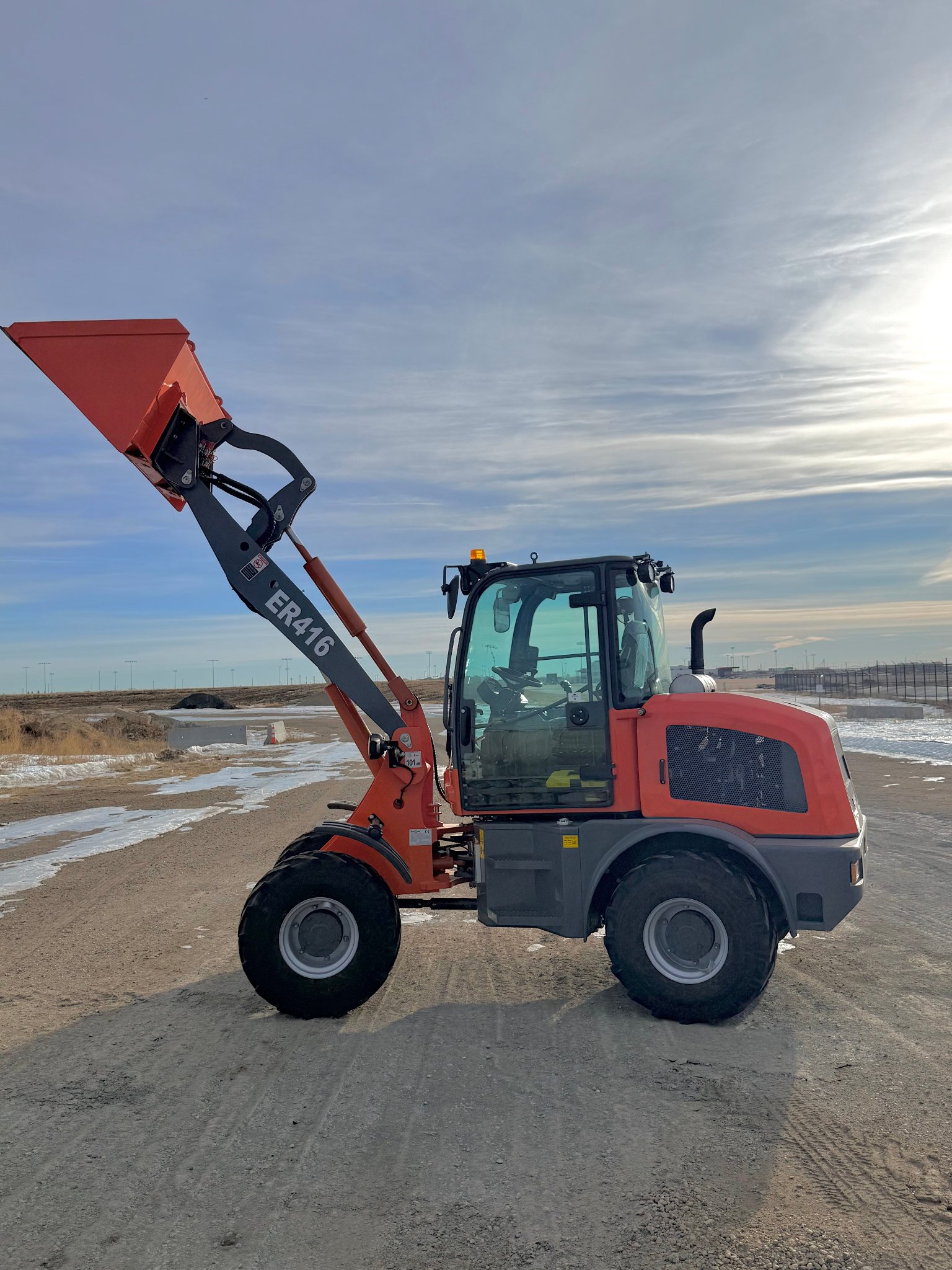

Wheel Loader
ER416
Mid-Range Workhorse
Balanced power and efficiency for general construction, agriculture, material yards, and municipal work. The versatile choice for diverse operations.
$64,900
Starting Price
1 / 5
49 HP
Engine Power
12,100 lbs
Operating Weight
0.73 m³
Bucket Capacity
3,527 lbs
Lift Capacity
Key Features
Balanced power and efficiency
Versatile attachment system
Comfortable operator environment
Reliable performance
Easy serviceability
Advanced hydraulics
Durable construction
Excellent visibility
Smooth operation
Low operating costs
Ideal Applications
General construction
Agriculture
Material yards
Municipal work
Landscaping
Aggregate handling
Need Help Choosing?
Our equipment specialists can help you determine if the ER416 is the right fit for your operation.
Technical Specifications
Engine
BrandPerkins
Power36.8 kW (49 HP)
Rated Speed2,400 rpm
CertificationEuro 3 / EPA
Weight & Dimensions
Net Weight4,400 kg (9,700 lbs)
Rated Load1,600 kg (3,527 lbs)
Overall (L×W×H)5267×1850×2535 mm
Tires23.5/70-15 Ag
Performance
Bucket Capacity0.73 m³
Max Dump Height2,453 mm
Max Dump Reach891 mm
Max Breakout Force28 kN
Steering & Brakes
SteeringArticulated Hydraulic
Min. Turning Radius4,451 mm
Service BrakeAir-assist Disc
Wheelbase1,520 mm
Request a Quote for the ER416
Get pricing, financing options, and delivery information for this model.
